Stainless Steel Honeycomb Panel With High Stability For Facade

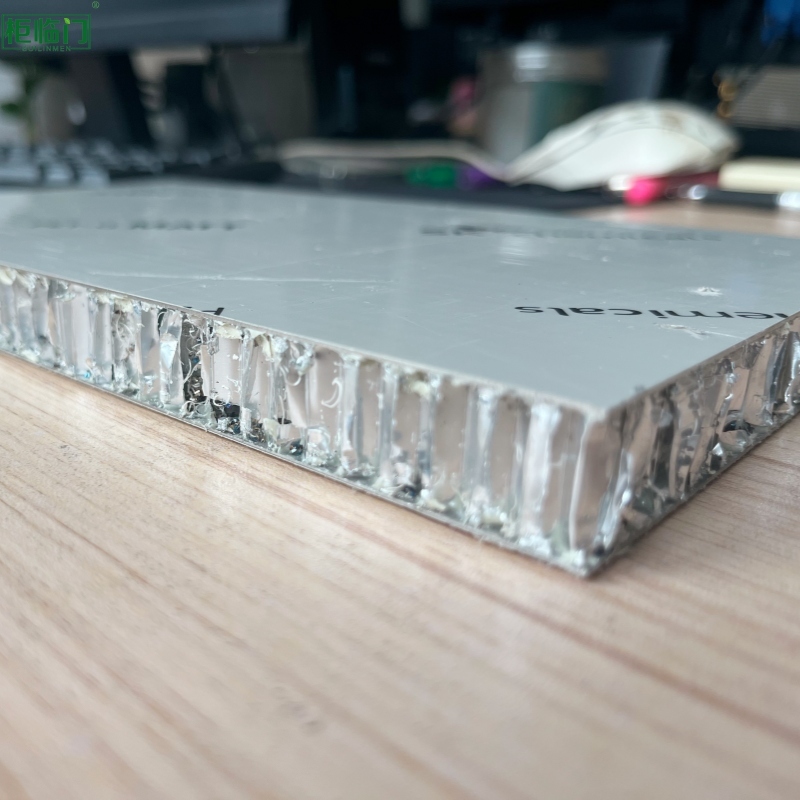

Stainless steel panel has been using for architectural purpose for façade, interior walls, ceilings, floors etc because of it's modern metallic decorative effect and good anti-corrosion. However for such architectural decoration purpose, a thickness of stainless steel panel should be 3mm or 4mm, it's very heavy and meanwhile panel surface is always not flat enough. To solve this problem, we use the lightweight aluminium honeycomb as substrate material to support the thin stainless steel skin sheets, so as to achieve a best strength & weight ratio, that's why we make stainless steel with honeycomb core.
Application
Stainless steel honeycomb panels are widely used in our daily life, not only in architecture area but also in transportation and other areas.
◊ For architecture: façade cladding and roofing, soffit, column cover, ceilings of the building. Mobile platforms for scenes or audiences.
◊ For ceilings, walls, floors, doors, platforms, all kinds of furnitures and outdoor balcony partitioning of cruise ships, fast ferries, luxury marine, yachts etc.
◊ For interior construction, for cleanrooms, partitions, lightweight containers, cabins for the machine tool, wind tunnels, lifting platforms, lifts.
◊ For wall cladding and roofing in the rail vehicle, for superstructures for lorry, for cabins, for doors and flap systems.
◊ For furniture, work table, and countertop.
◊ For bus stop shelter, sunshade, and awning platform.
Specification
|
Panel thickness
|
10mm, 18mm, 25mm, 50mm or customized panel thickness
|
|
Panel width
|
1000mm, 1200mm or customized panel width
|
|
Panel length
|
2440mm, 3000mm, 4000mm, 5800mm or customized length
|
|
Stainless steel skin thickness
|
0.5mm, 0.7mm, 0.8mm, 1mm (or as required)
|
|
Stainless steel grade
|
201, 304, or as required
|
|
Honeycomb core
|
Aluminium honeycomb A6*0.05 (or as required)
|
|
Stainless steel patterns
|
8K Mirror, hairline, various types of embossed surfaces
|
|
Colors
|
Original stainless steel color, various types of PVD colors (Physical vapor deposition technology)
|
|
Shape
|
Flat panel, curved panel, customized
|
|
Panel edge
|
Closed edge, customized edges embedded with aluminium extrusions
|
|
Fabrication
|
Fabrication or cutting service as per drawing upon request
|
Overview of Our Factory
FAQ
1. Can Stainless Steel Honeycomb Panels be used for exterior applications?
Yes. They can be designed for various indoor and outdoor applications, including building facades, commercial buildings, hotels, airports, transportation facilities and other architectural projects. The panel structure, stainless steel grade and surface treatment should be selected according to the specific application and environmental conditions.
2. Do you provide OEM and ODM services?
Yes. As an R&D and manufacturing company, we provide OEM and ODM services including customized panel sizes, thicknesses, stainless steel grades, honeycomb structures, surface finishes, colors, logos and packaging. We can also develop customized solutions for specific projects and markets.
3. Can you provide certificates and test reports for international projects?
Yes. We can provide relevant technical documents, material certificates and test reports according to the product specification and project requirements. If your project requires specific EN, ASTM or other standards, please provide the required specifications so our technical team can confirm the applicable documentation.
4. What is your MOQ and production lead time?
MOQ and lead time depend on the panel size, stainless steel grade, thickness, surface finish, customization and order quantity. We support samples and trial orders for qualified customers and provide a clear production schedule after order specifications are confirmed.
5. How do you ensure product quality and safe international delivery?
We control key production parameters including raw materials, panel dimensions, flatness, bonding performance and surface quality. For international orders, we use export-standard protective packaging, pallets and customized protection where required, and can optimize container loading to reduce transportation costs and minimize the risk of damage.
